Large Format Laser Cutting Machine
Extra-large format, customizable tabletop size, supports beveling, maximum power 60KW
Key Features
Extra-large working area for oversized sheet metal processing
High-power fiber laser up to 60000W for thick plate cutting
Auto-focus cutting head adjusts focus position in real time
Precision rack and pinion drive with linear guides
Main Configuration
| Laser source | Raycus Fiber Laser |
| Laser head | Boci/Precitec |
| Control system | Cypcut System |
| Water chiller | Tongfei |
| Servo motor | Yaskawa |
| Reducer | Shimpo/Motovario |
| Guide | HiWin |
| Gear&Rack | YYC |
| Air conditioner | KW |
| Valve | SMC |
Technical Specifications
| working Area | 3000×13000mm / 4000×16000mm/Custom made |
| laser Power | 12000W - 60000W |
| positioning Accuracy | ±0.03mm |
| repeatability | ±0.02mm |
| max Speed | 80m/min |
| acceleration | 0.8G |

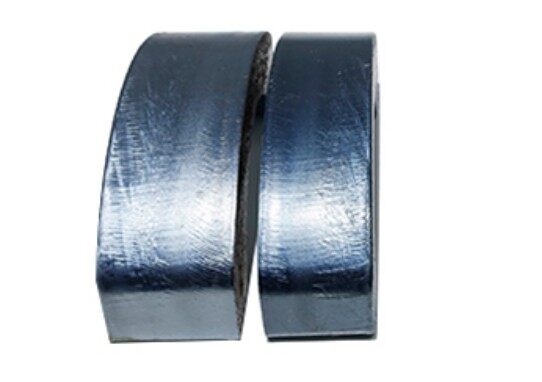

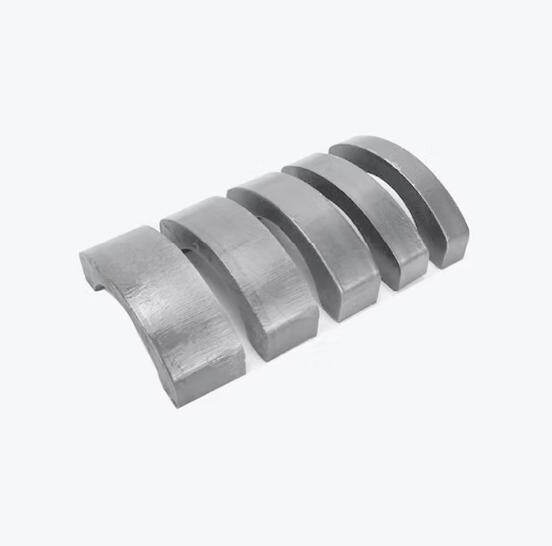

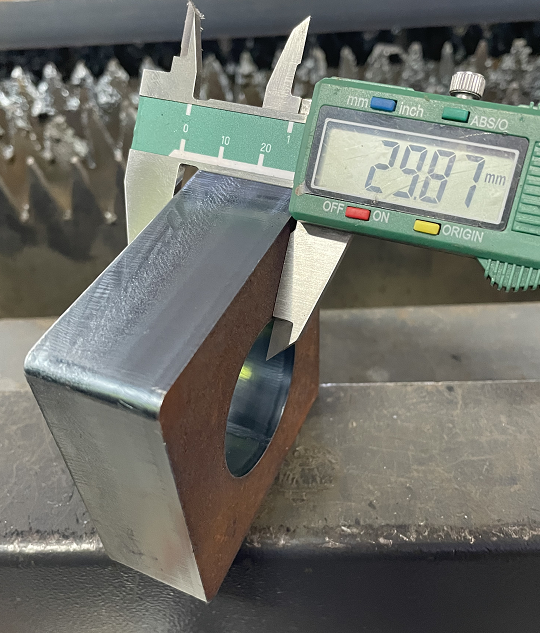

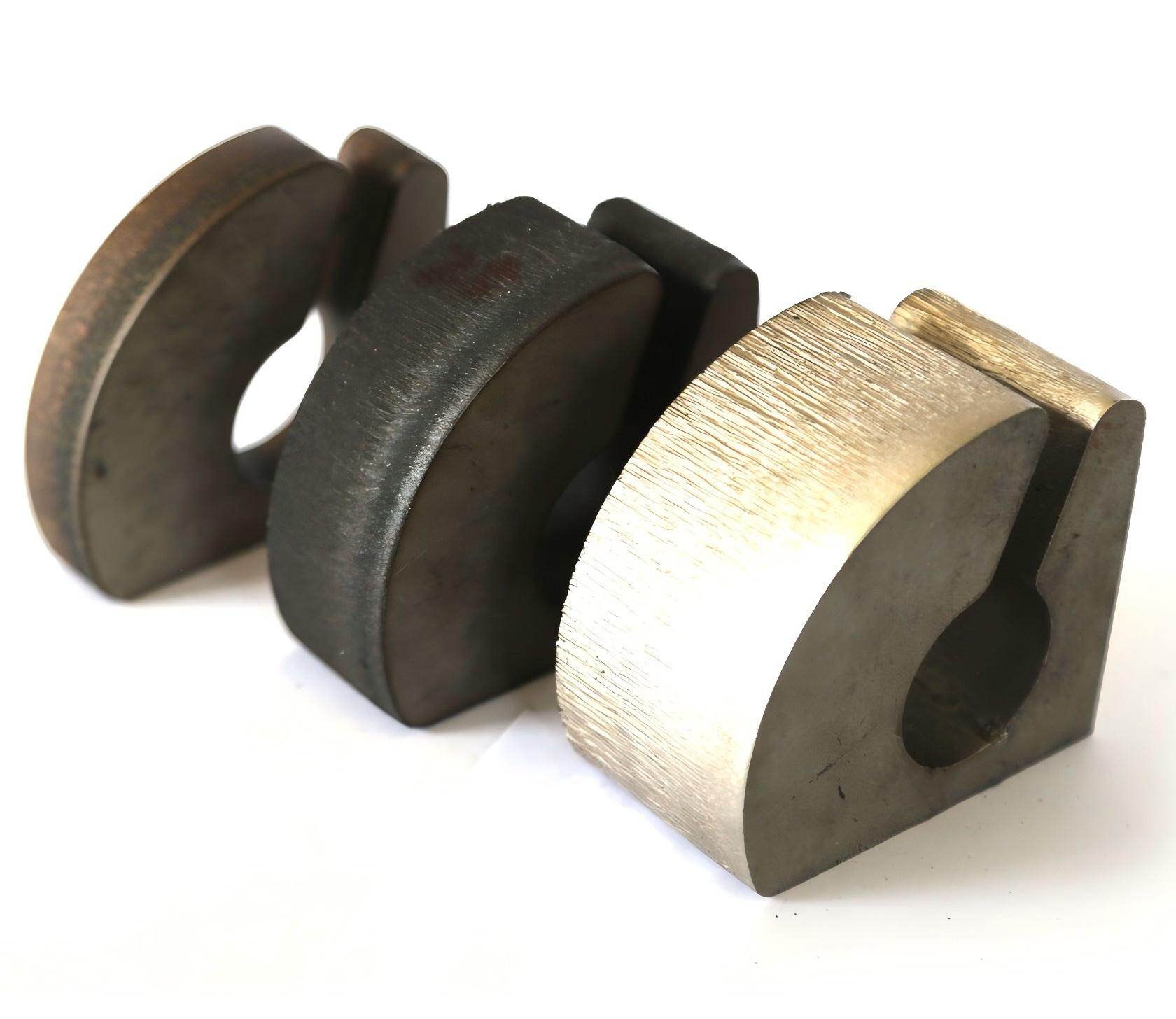

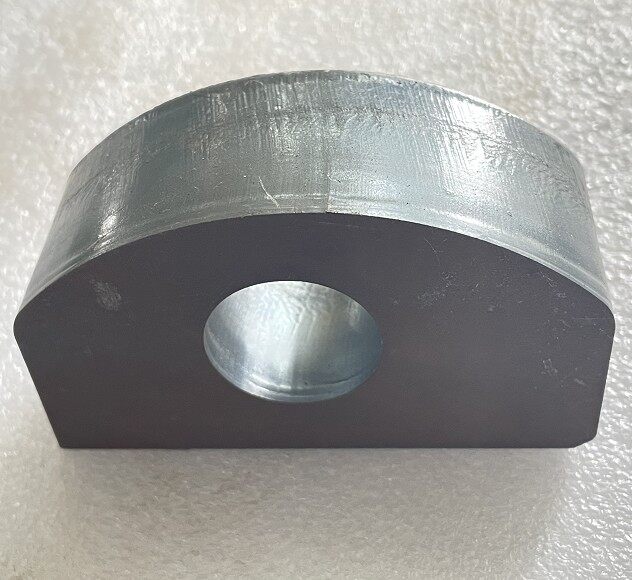

| max Thickness | Carbon steel: 100mm, Stainless: 100mm |
